  • iscan cobra V-cradle semi automatic book scanner <<返回

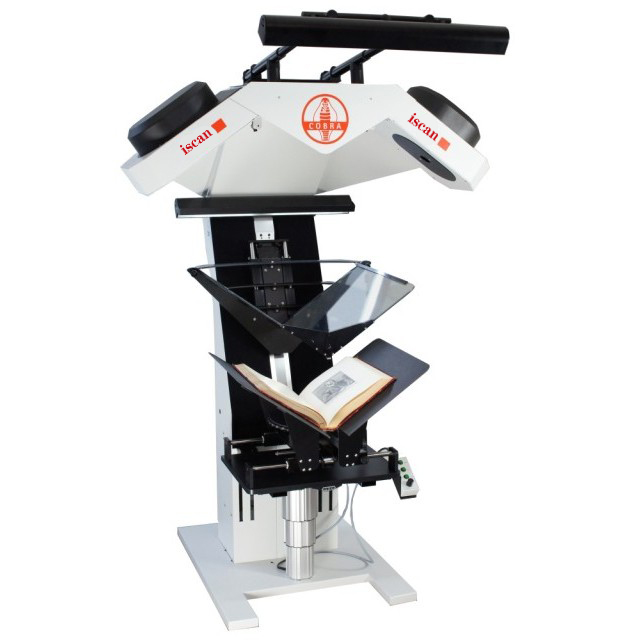

    iscan cobra V-cradle semi automatic book scanner - Large format specialist

    Quality & efficiency for highest conservatory demands

          The use of the latest matrix sensor technology in our advanced "book saver" will provide you with the opportunity to benefit from the additional advantages in the area of image quality and productivity.

            The Light-Control-Module we developed especially for the iscan cobra offers the possibility to adapt the light intensity to your conservatory needs. The light intensity resp. color temperature can be reduced down to 2000 lux.
    State-of-the-art PLC control
    High-precision linear drive
    Variable control:
    - Fully automatic
    - Semi-automatic
    - Manually
    - Time-controlled
    - Action-controlled
    - User-controlled
    Programmable scan-processes
    Book size-hormonized traverse paths
    Wearfree precision guidance of the glass plate
    Electronic pressure control

    Unique butterfly system

    Available as an option, allows scanning without additional pressure.

    Features & Options


    iscan cobra A1

    Semi Robotic Standard Info
    Legend: √ - included, O - option

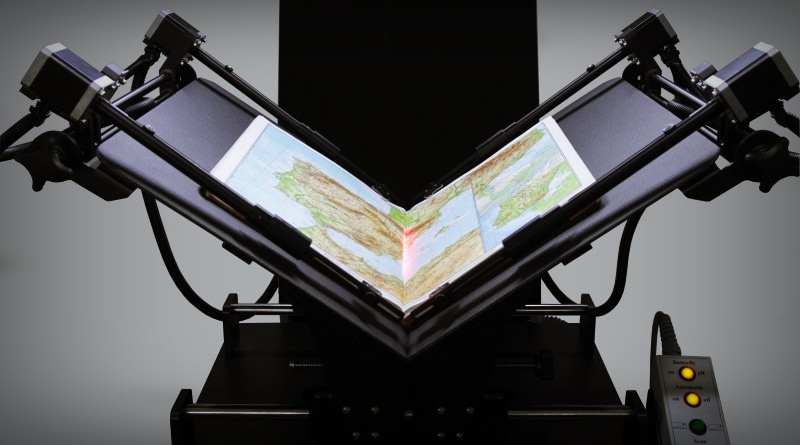

    V-shaped book cradle

    110o opening angle

    layout section: 635 x 900 mm

    Scanning speed 0.3 s. 0.3 s. full format / maximal resolution
    Cycle time 3.5 s. 3.5 s. scanning + imaging + saving
    Optical book curve correction
    Mechanical spine exemption 10 cm width
    Mechanical spine exepmtion 20 cm width O O

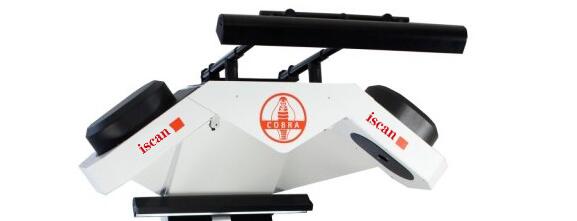

    LED illumination system UV and IR free
    Dual LED system O O

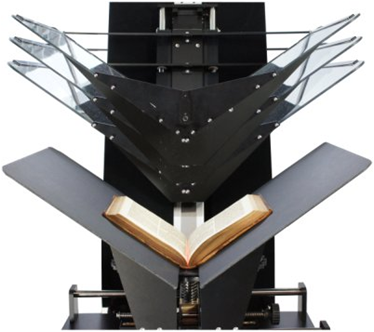

    PLC controlled V-shaped glass plate   linear actuator, adjustable pressure sensivity, integrated motion monitoring
    Controller Module 1
    Controller Module 2
    Motorized height adjustment of the book table   up to 25 cm, PLC controlled spindle drive, lifts up to 180 kg

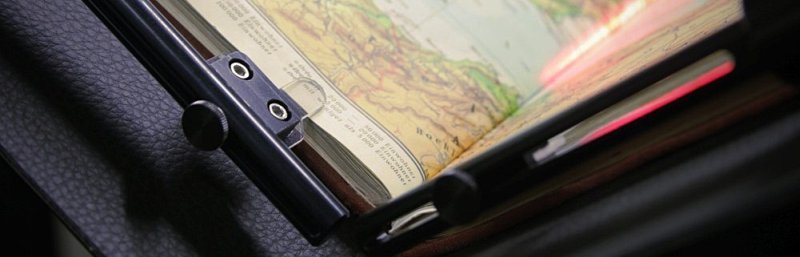

    Butterfly system O   frame with adjustable clamps, keeping the book open without any stress for the pages
    Manual book holding support O O
    Alignment tool O O illuminated subsidiary center line
    Easy Scan Professional
    Focus tool
    Foot switch O scan initiation
    Foot switch Premium 2 4 pedals to adjust the height and control the glass plate
