  • iscan hornet Large bookscanner A0 <<返回

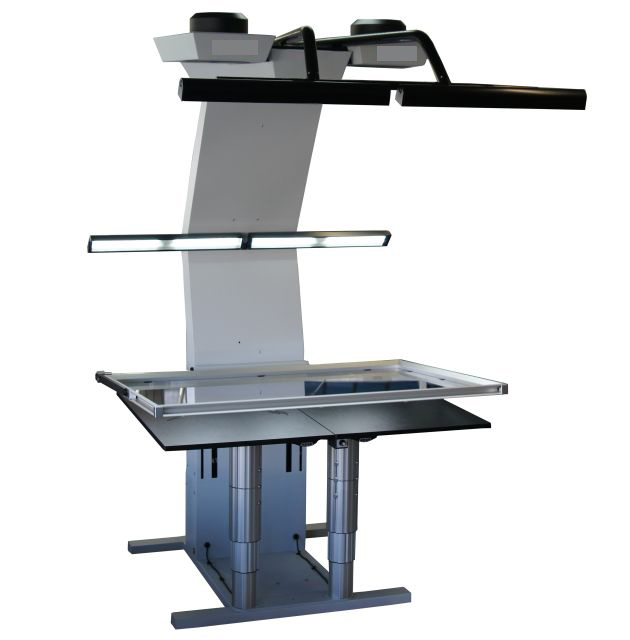

    The most efficient semi automatic A0 book scanner

    With the iscan hornet we have developed a high-performance machine with PLC-controlled precision drive that ensures an extremely gentle digitization and meets the ergonomic requirements in combination with a high productivity.

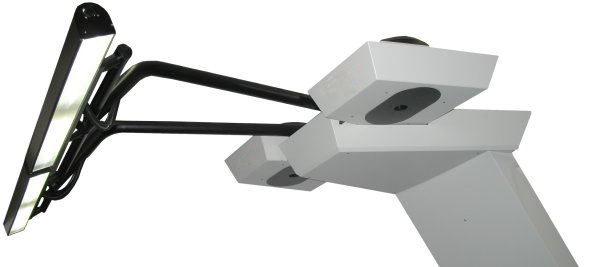

    Modular lighting units, variable book cradles and programmable control modules make the iscan hornet uniquely flexible scanning system that can be precisely adjusted to the specific requirements of your digitization project!

    Matrix sensor technology

    True scale capturing and controller modules

    Especially for thick large-format books with wide spines, a height adjustment by the book cradle is essential in order to achieve a true-scale digitization. Thanks to the dual laser system, the iscan hornet can be set to the ideal focus level within seconds.

    Through their PLC controlled spindle drive, the specially developed motor driven profile lifting columns of the new iscan hornet semi-robotic enable a precise height adjustment of the book table up to 25 cm resp. 40 cm if desired. Designed for a payload of up to 180 kg each, they comfortably support the scanning of thick and large books.

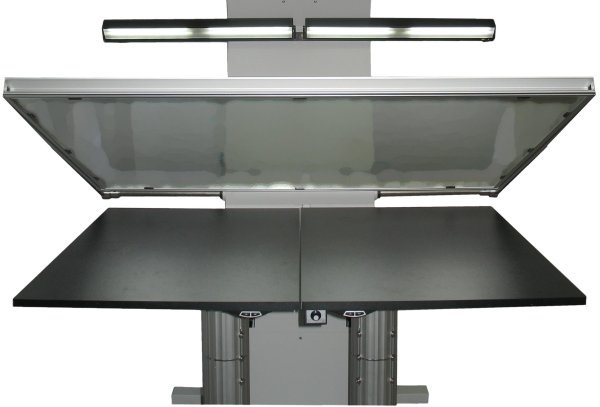

    Following customer requests, we have developed different control modules and additional options for the glass pressure system and book cradle of the iscan hornet semi-robotic to specifically meet the complex requirements of various originals and working processes.

    Controller module 1: for the optimization of the aperture angle of the pressure system with automatic adjustment to the book size.

    Controller module 2: for optional control of the fully automatic, semi-automatic and manual operation.

    Controller module 3: for the automated guidance of book thickness adjustment.
